23300131X000(L) Five Button Switch For Power Recliner Or Lift Chair With USB

• Genuine 23300131X000(L) switch: This is a genuine 23300131X000(L) switch. If your current switch has the same model number, this product will be a perfect replacement.

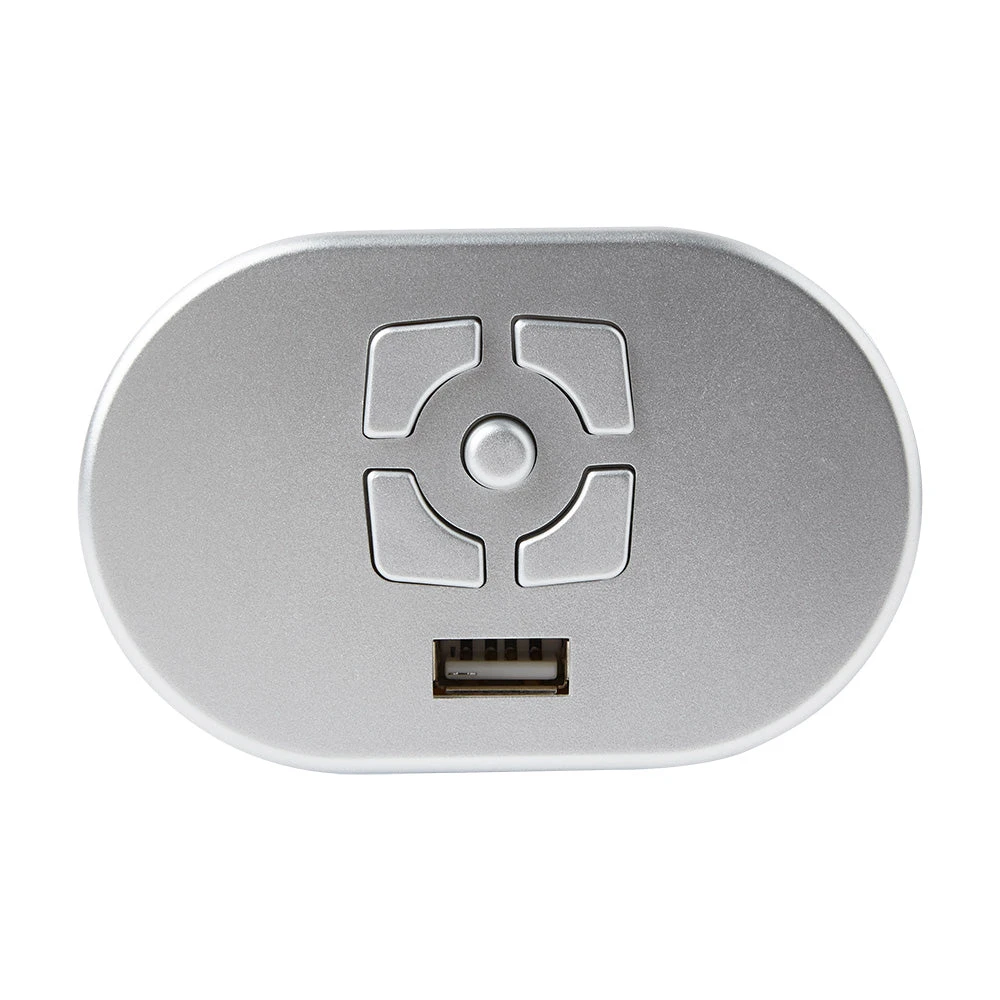

• Five buttons: The switch has five buttons; it controls the up/down of the chair and forward/backward of the head cushion. And the button in the middle serves as a reset/home button.
• This switch is suitable for 2-motor/linear actuator recliners/lift chairs.

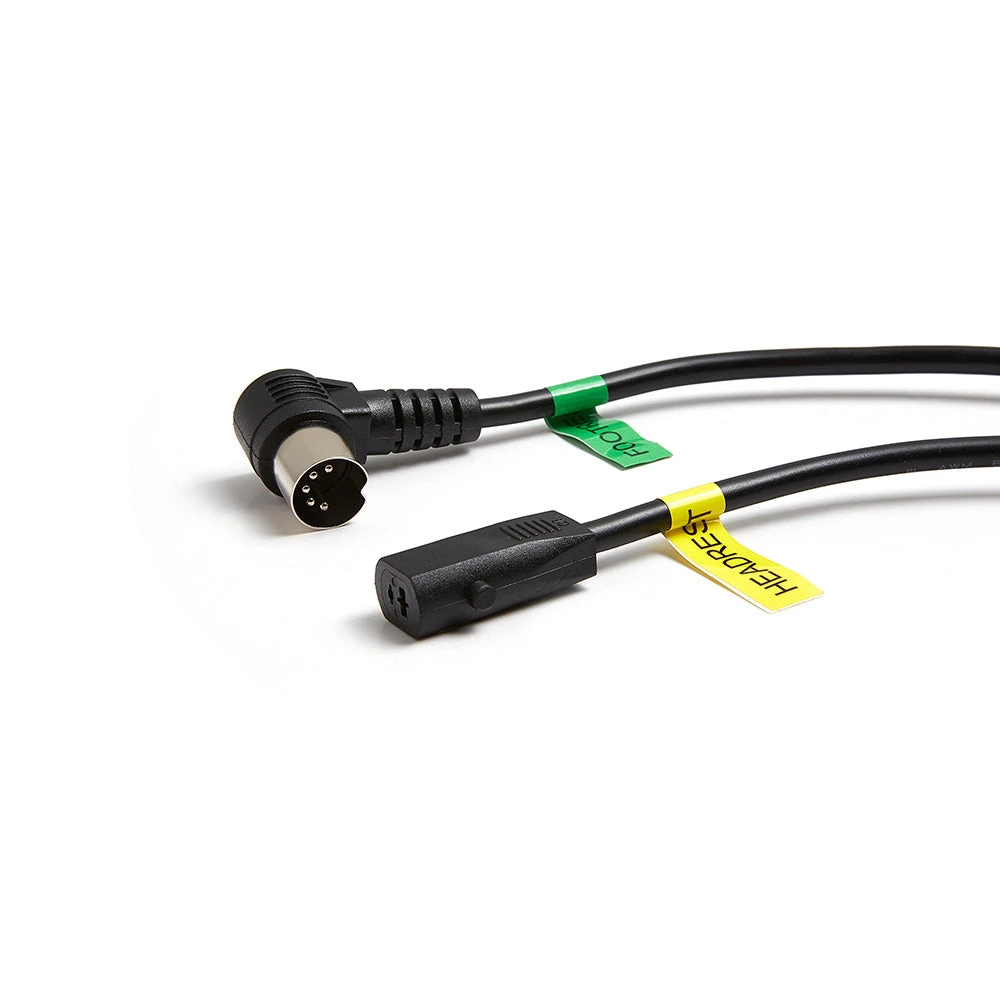

• 5 pin + 2 pin plugs: This switch has 2 cables & plugs. The round 5 pin plug connects to the footrest motor, the 2-pin plug connects to the head cushion motor.
• With a USB charging port, you can use it to charge your mobile device.
• This switch is not cross compatible. Please only order it when your current switch has the exact same model number.
• We can provide other “233” series switches and remote controls, if you need a different model, please feel free to contact us for a quotation.



Specification

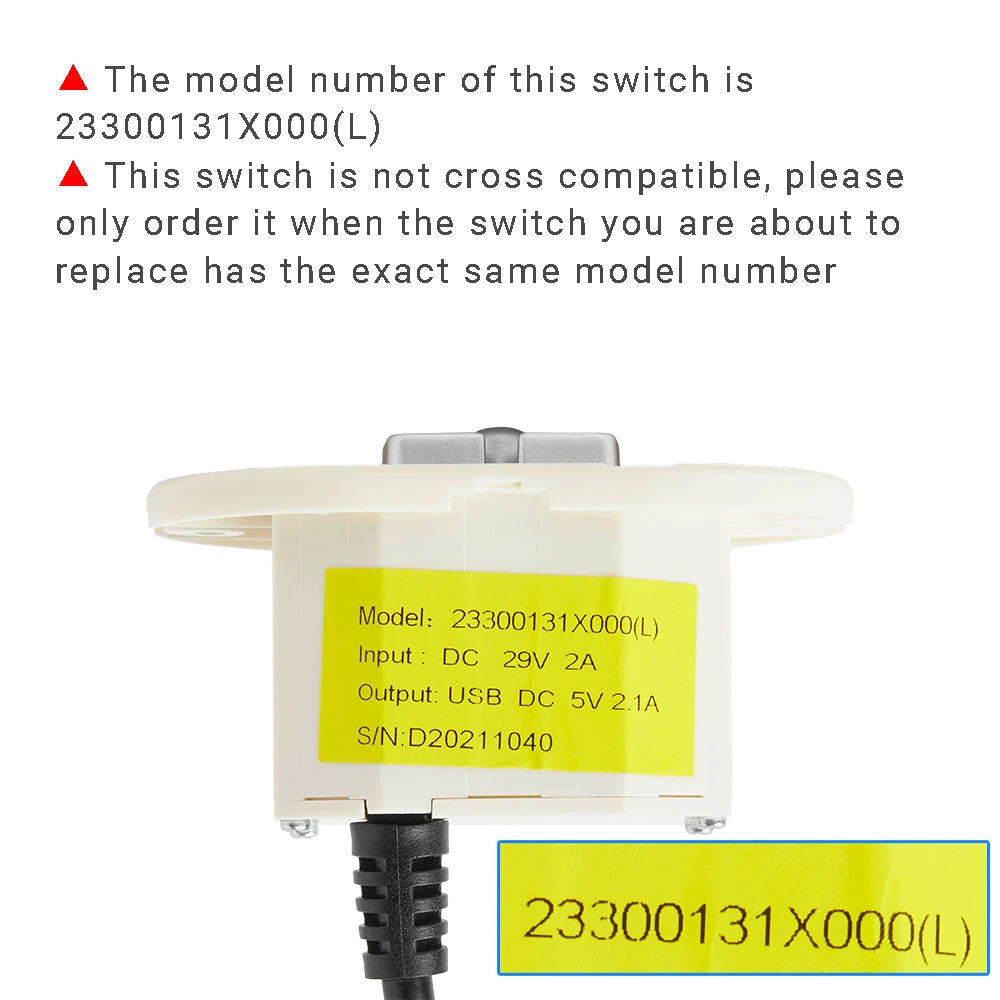

• Model Number: 23300131X000(L)
• Rated Voltage: 29V 2A
• USB port output: 5V 2.1A

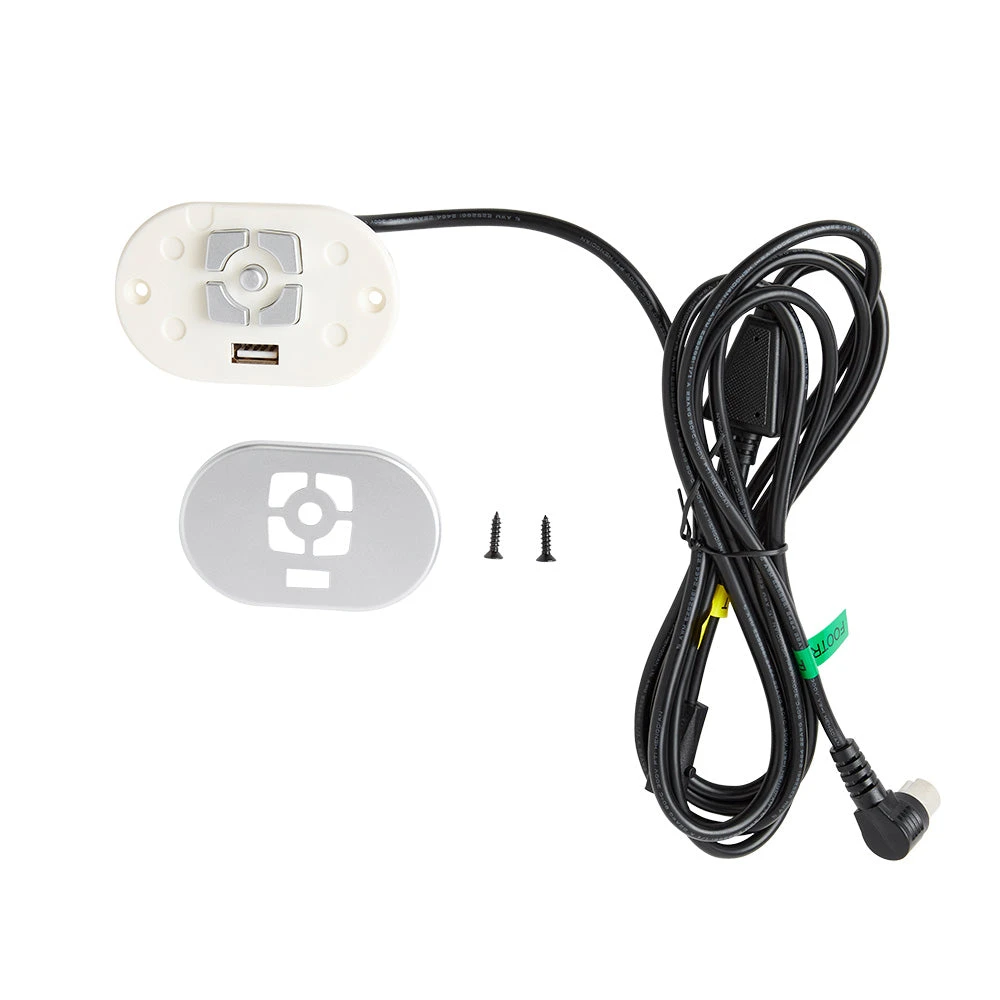

Package includes:

• 1* switch
• 1* plastic cover



Notes:

• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate the chair to the highest and lowest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
