EMoMo HX90AHU Switch For Lazy Boy Recliner 2 Button USB

• This is the genuine eMoMo HX90AHU switch, it has 2 buttons and 1 USB charging port, it is suitable for some Lazy Boy recliners.
• The model of this switch is HX90AHU, if your switch has the same model, then this switch can perfectly replace yours.
• The switch has 2 butterfly buttons, which can control the up/down of one motor

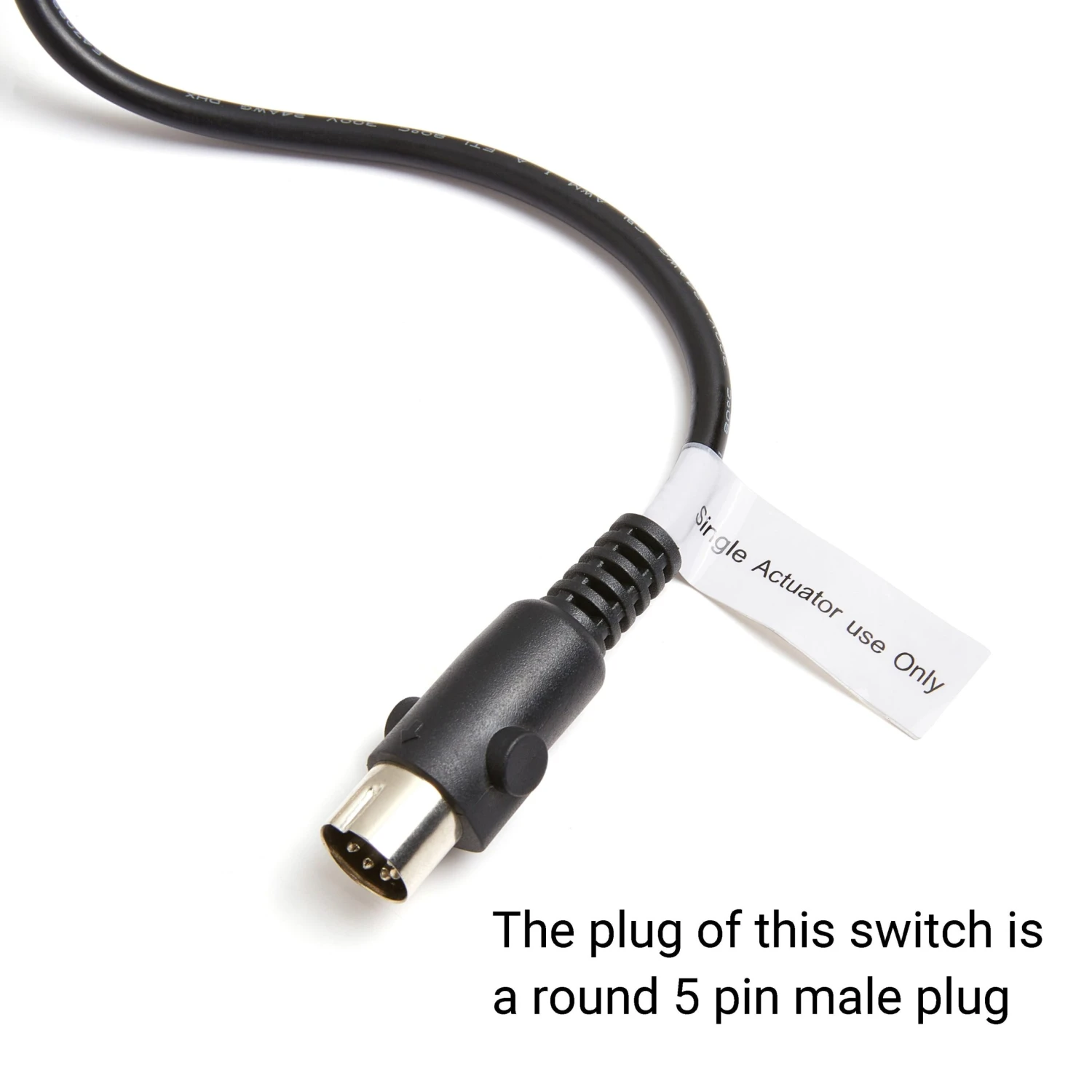

• The plug of the switch is a round 5-pin male

Caution:

• The switch is not universal, it only works on several lazy boy recliners

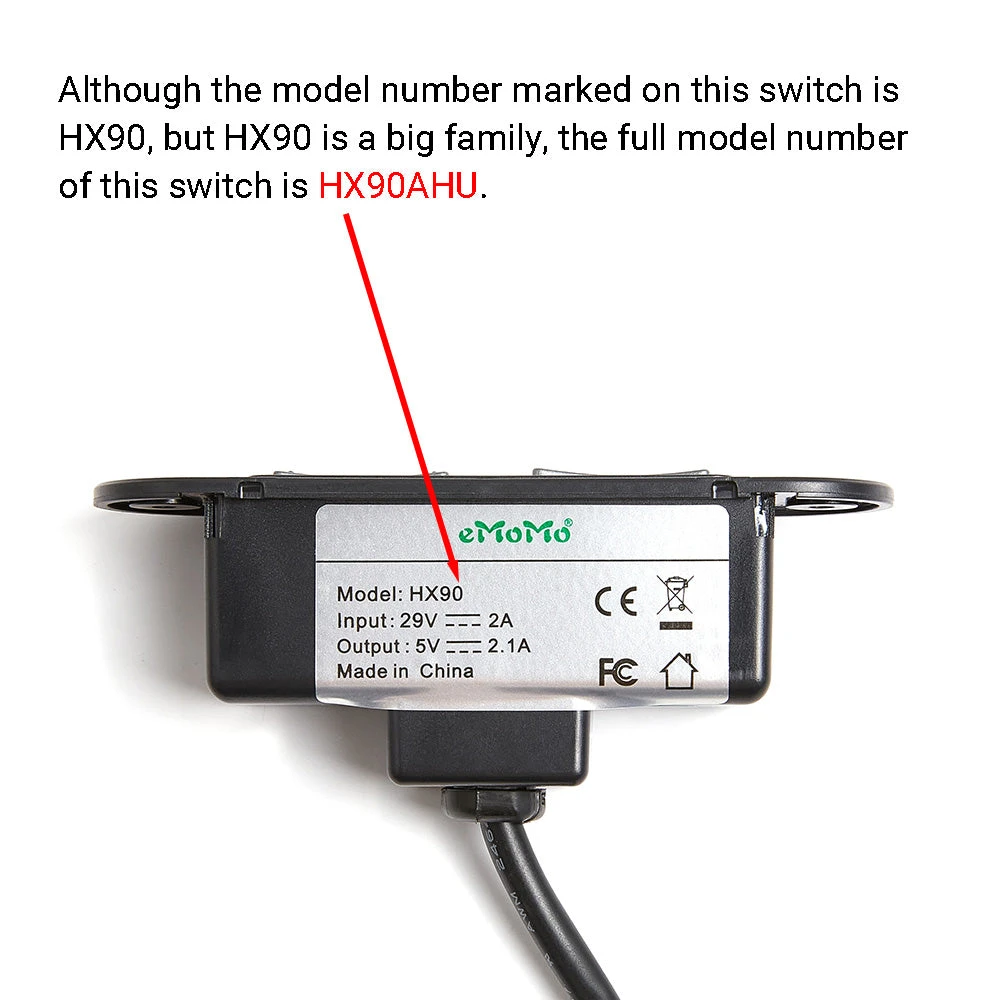

• Although the model number marked on the switch is HX90, but HX90 is a big family, its full model number is HX90AHU.

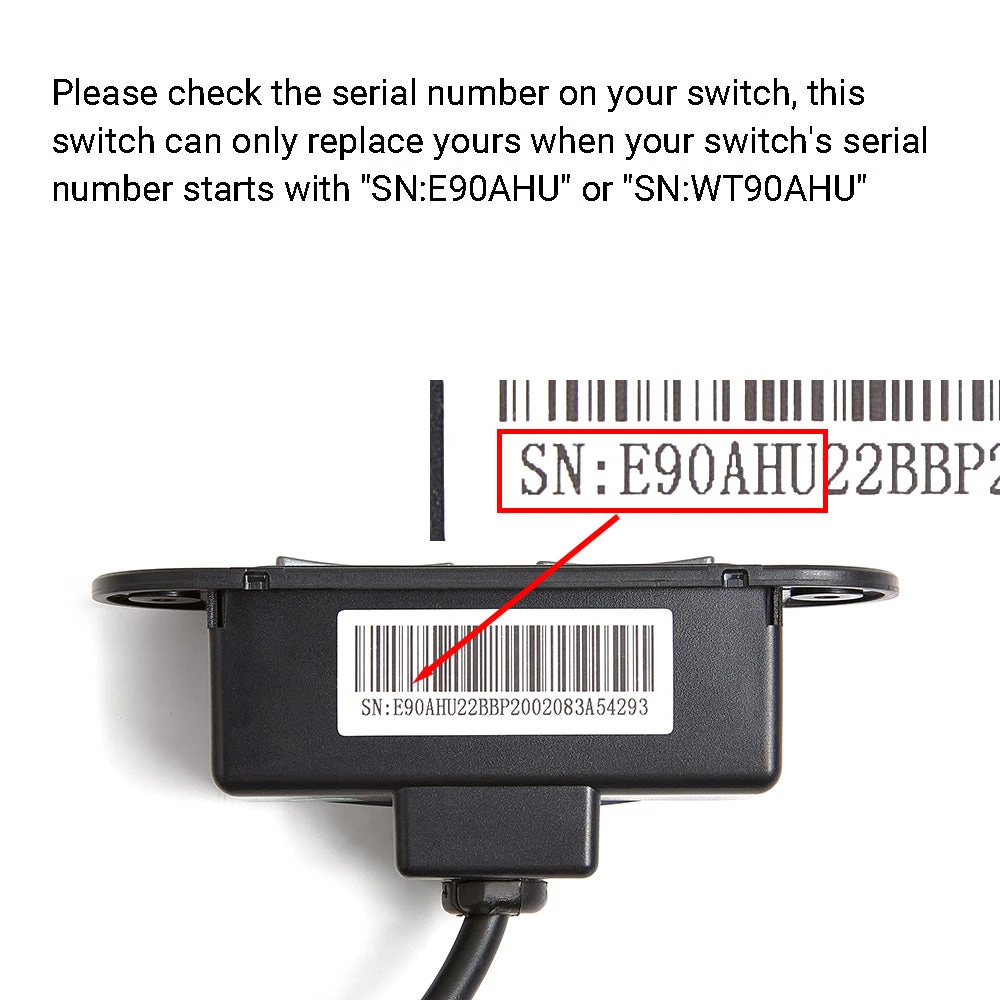

• Please check the serial number of your switch, make sure it starts with “SN:E90AHU” or “SN:WT90AHU”, if not, then this switch cannot replace yours.

Note:

• The cover plate of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the cover until everything is done.
• After installing this switch to your chair, please operate the actuator motor to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is large, quick operation is more likely to cause damage to the switch.
