EMoMo HX90NCLU Switch For Recliner/Lift Chairs With 5 Button 3 Plug And USB

• This is the genuine eMoMo HX90NCLU switch, a 5-button switch designed specifically for use in power recliners, lift chairs, sectional sofas, and other motion furniture.

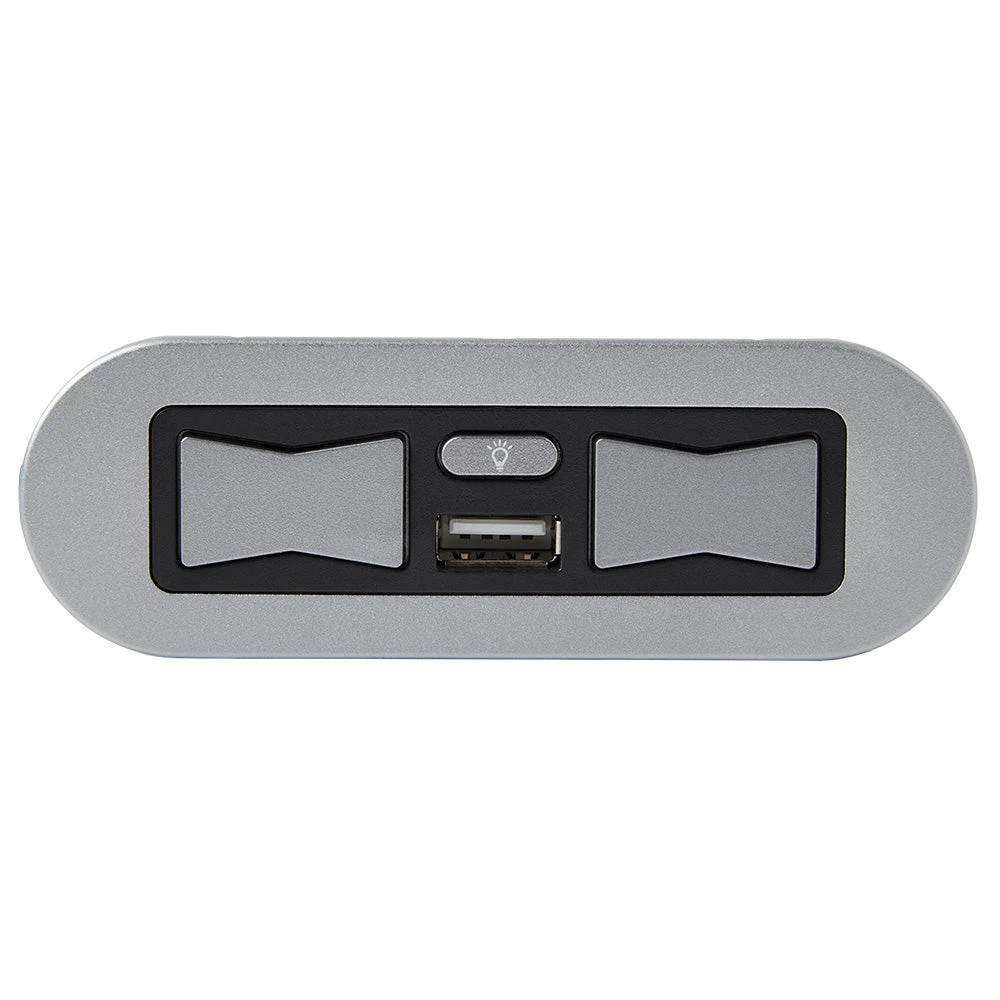

• The HX90NCLU switch has 5 buttons, the 2 butterfly buttons control the up/down movement of the chair and the backward-forward movement of the head cushion: meanwhile the button in the middle turns ON/OFF the LED light.
• This switch comes with a built-in USB charging port that outputs at 5V 2A, allowing you to charge your mobile devices while you relax in your chair.

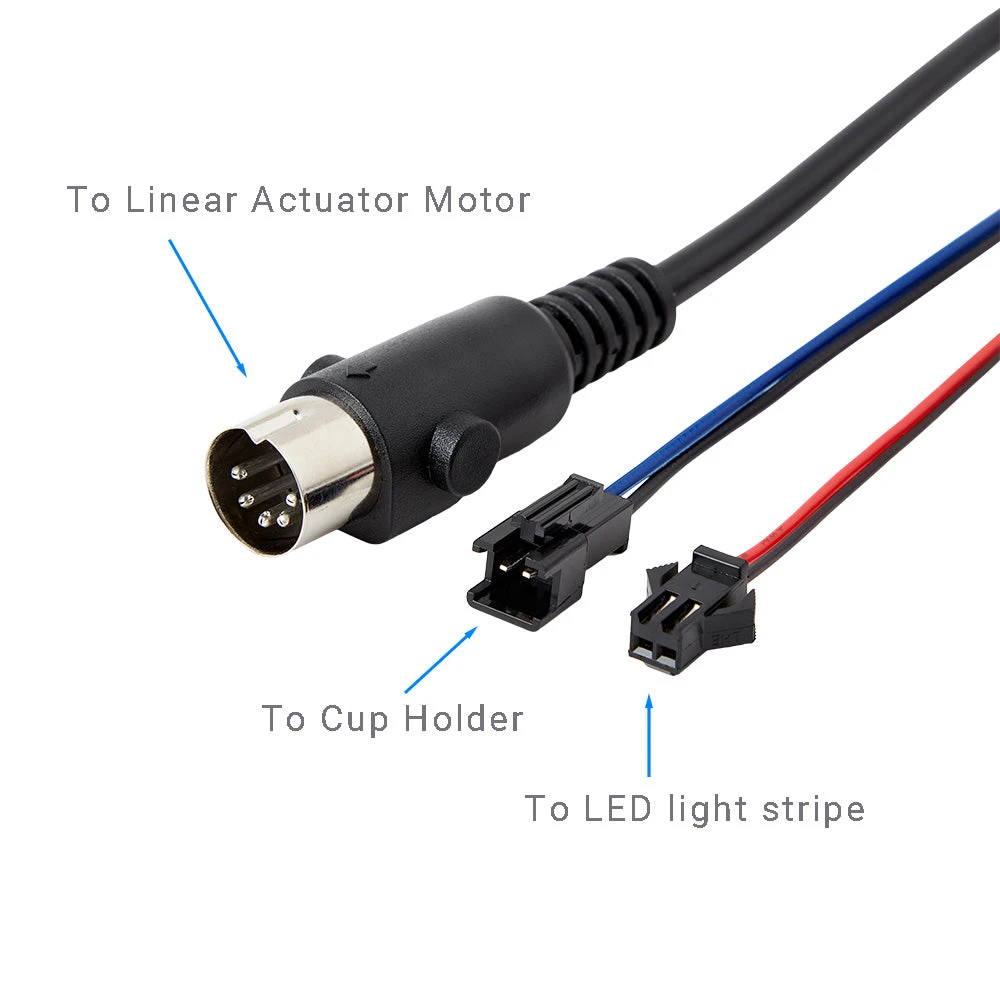

• The HX90NCLU switch has 3 plugs: the round 5 pin plug connects to the linear actuator motor. The 2 pin plugs connect to the cup holder and the LED light stripe.

Please note:

• The HX90 switch is a big family with tens of sub-models, and most of them are not cross-compatible.

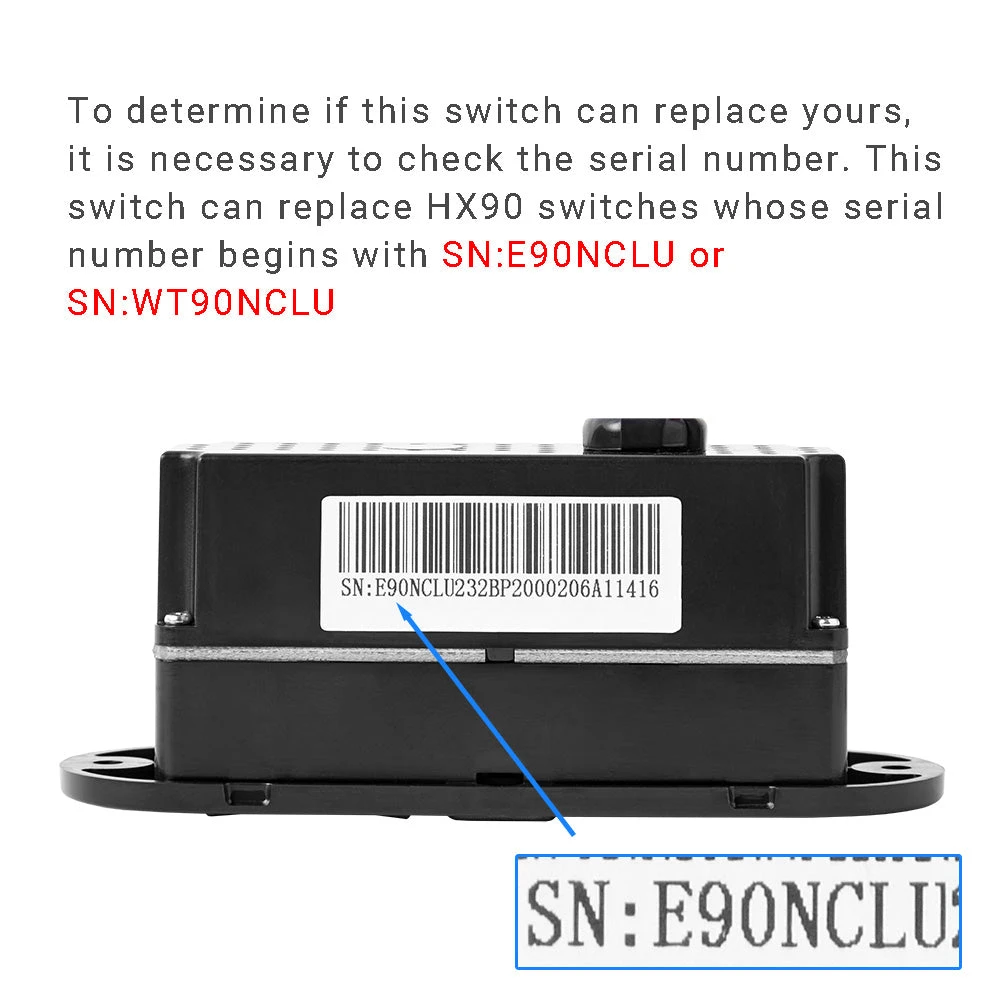

• To determine if this switch will work as a replacement for your current switch, it is necessary to check the serial number. This switch can replace HX90 switches whose serial number begins with SN: E90NCLU, SN: WT90NCLU.
• We can provide other eMoMo switches as well, if you need a different one, please send us a picture of your switch’s serial number sticker, we will recommend the correct one for you.

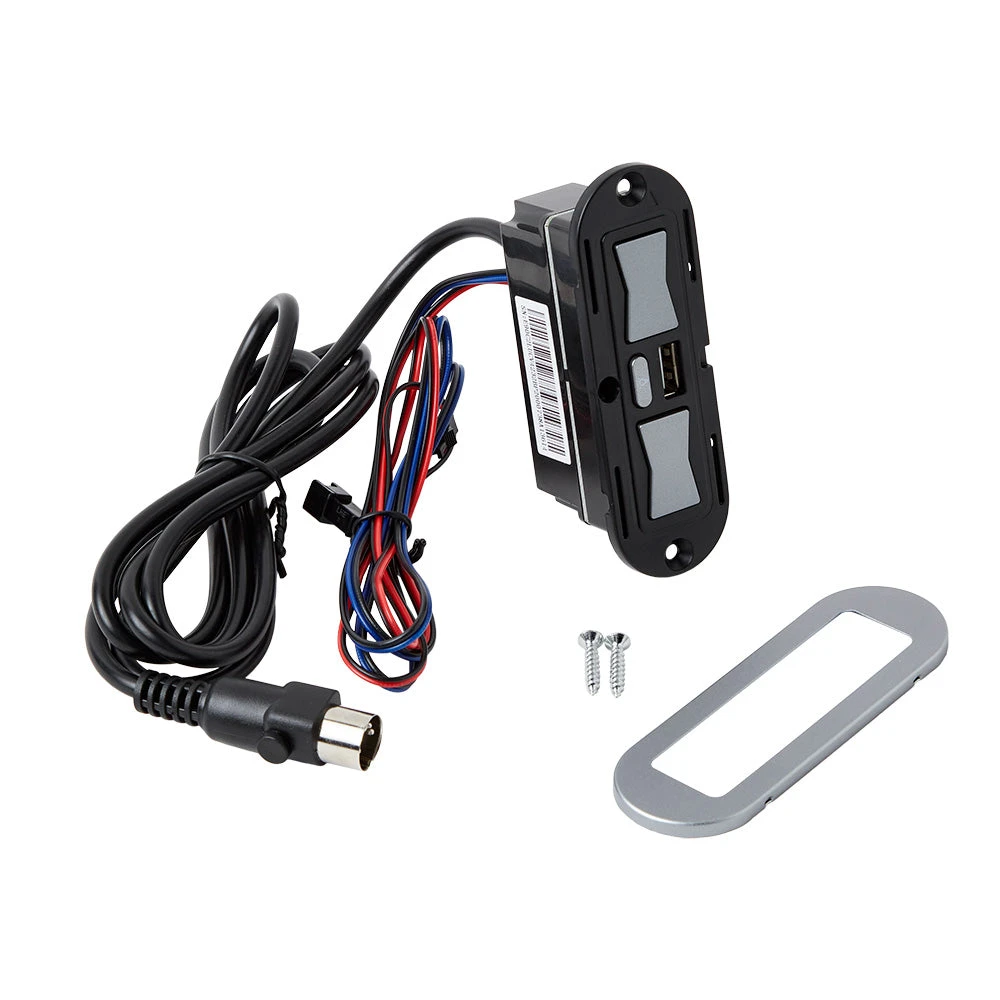

Package includes:

• 1* HX90NCLU switch,
• 1* Aluminum switch face plate
• 2* Mounting screws
