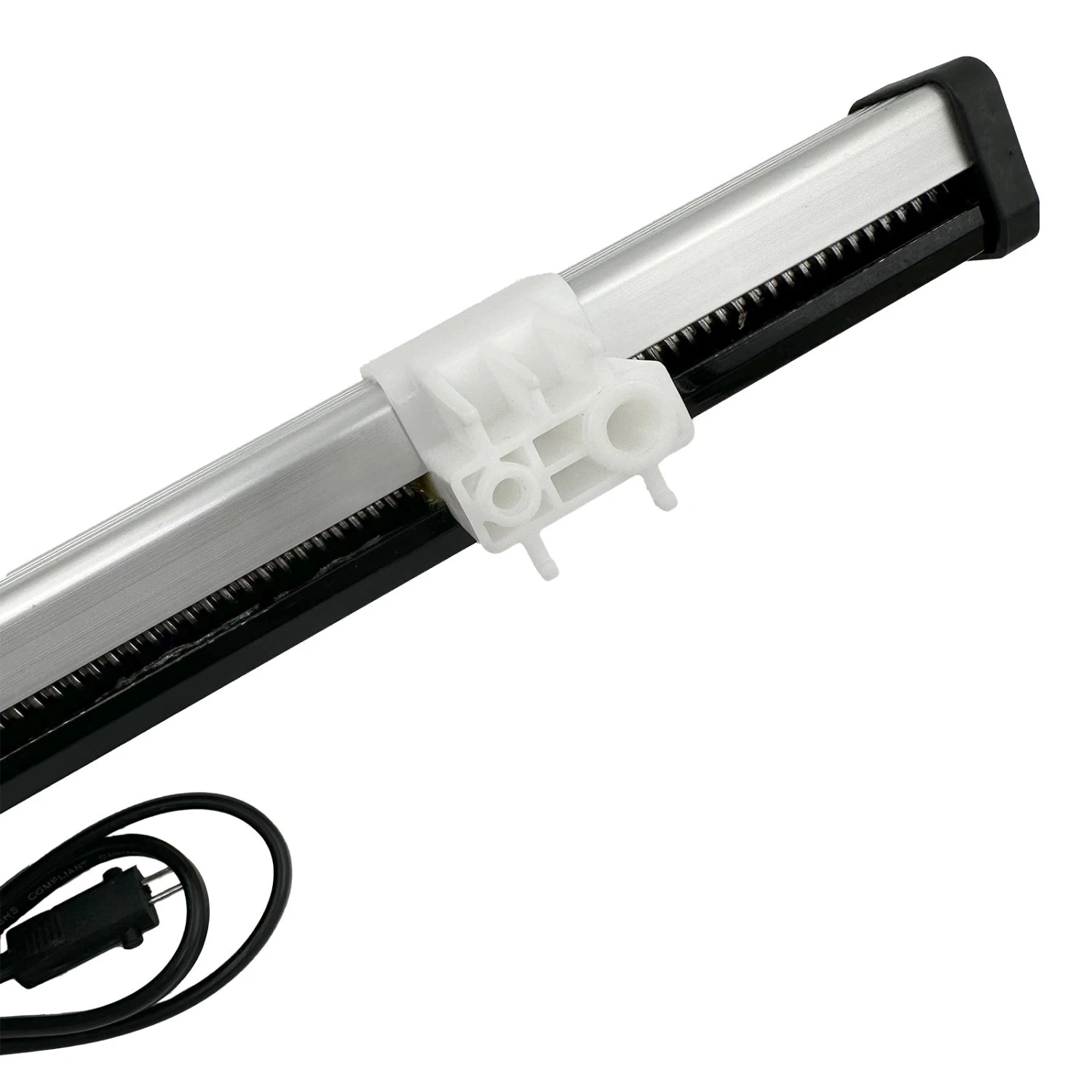

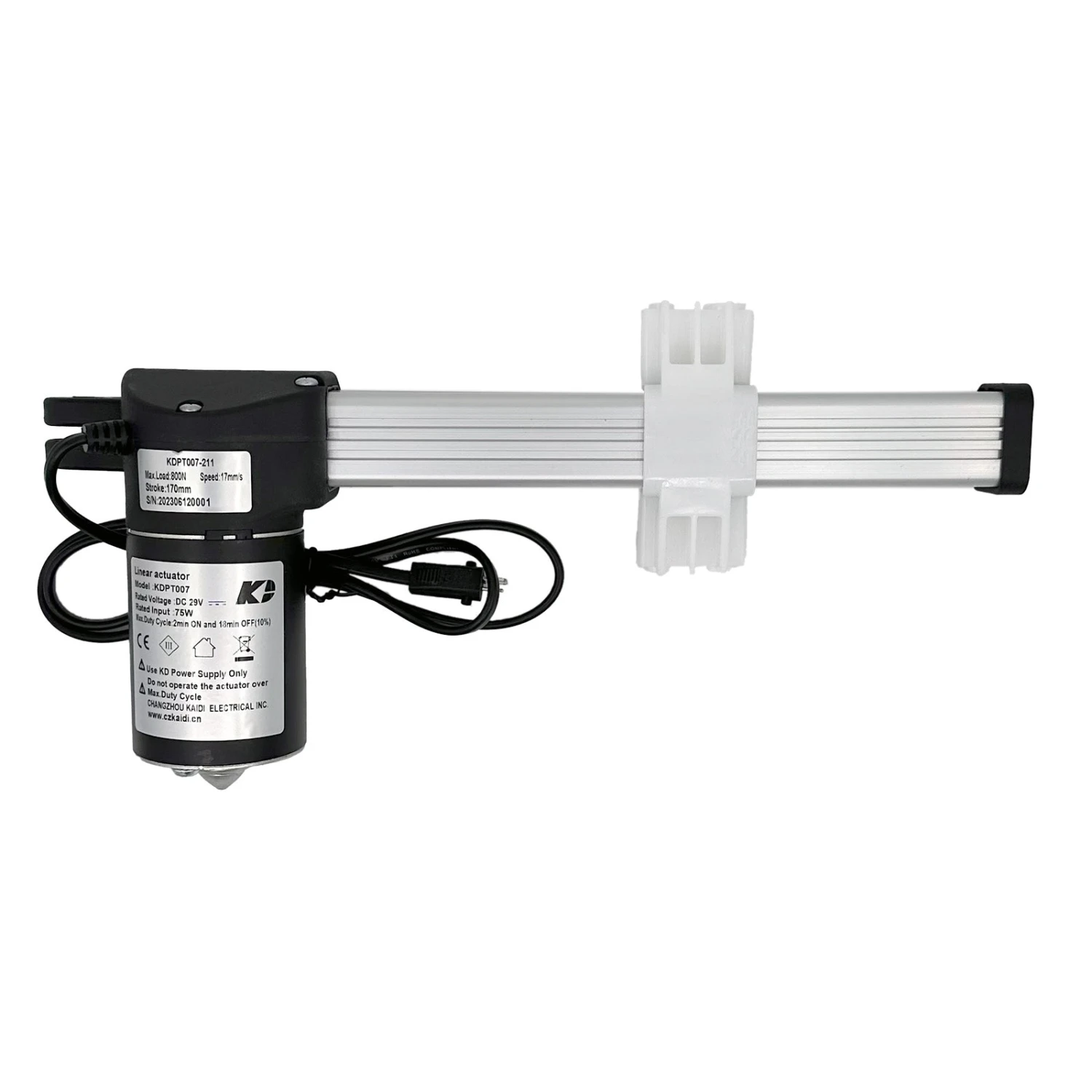

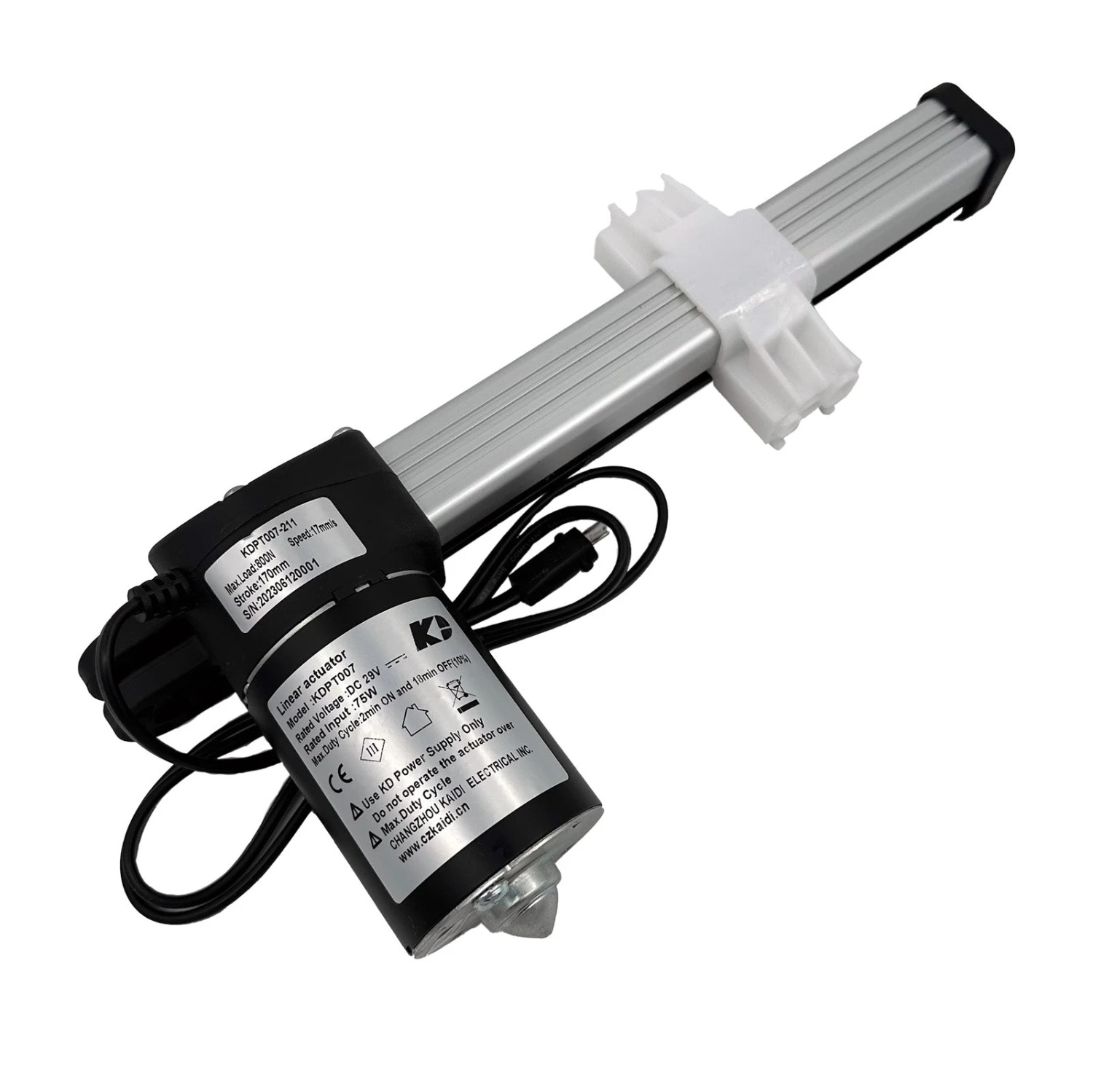

Kaidi KDPT007-211 Linear Actuator Assembly

• This is the genuine Kaidi KDPT007-211 linear actuator assembly.
• This actuator is used for motion furniture, such as power recliners, lift chairs, couches, and loveseats. It drives the head cushion or lumbar forward/backward.

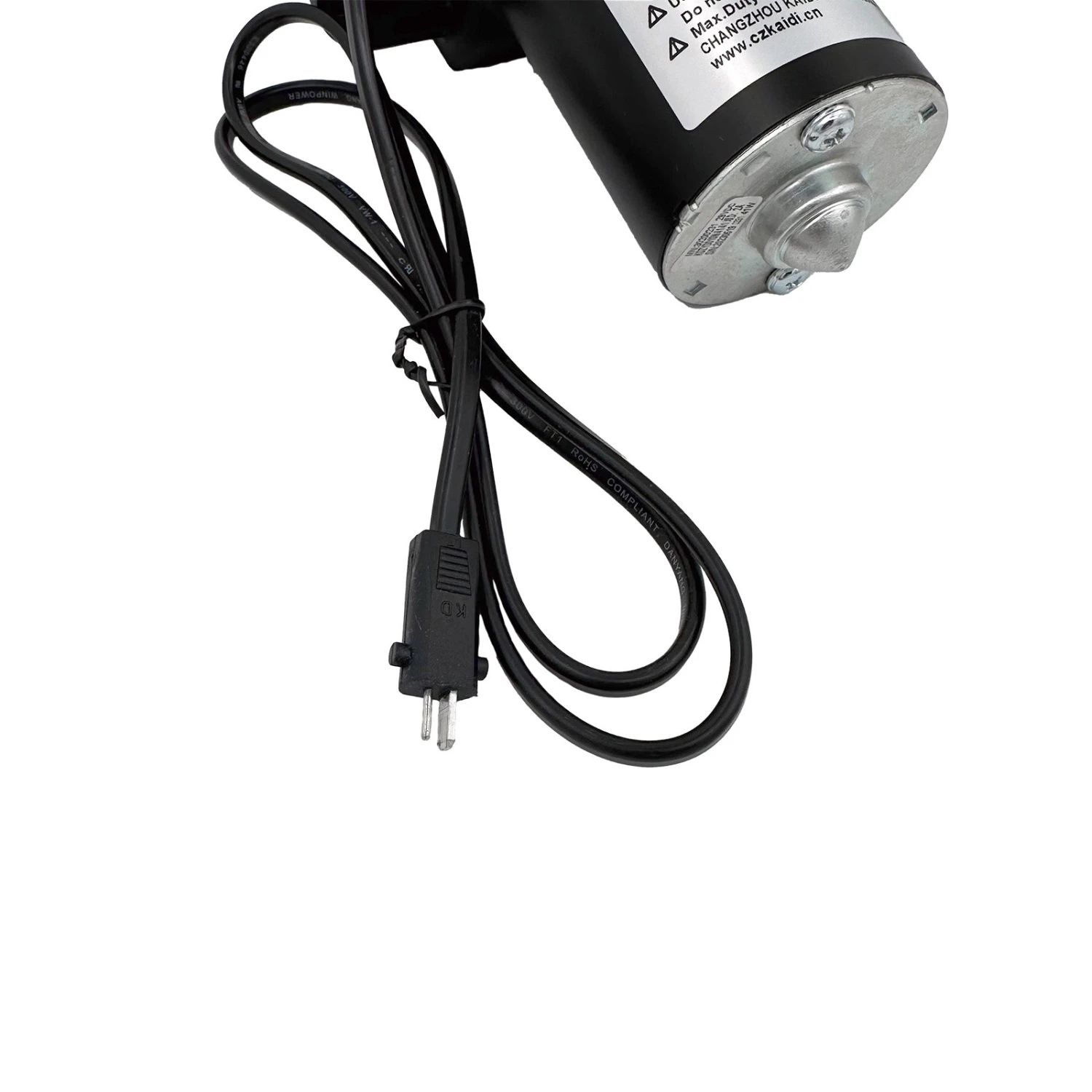

• The stroke for this linear actuator is 170mm, and it has one lead with a 2-pin plug connects to the main motor or junction box.



Specifications:

• Model: KDPT007-211
• Maximum load: 800N
• Speed: 17mm/s
• Stroke: 170mm
• Rated voltage: DC 29V
• Rated power: 75W
• Maximum duty cycle: 2 minutes ON and 18 minutes OFF



Please note:

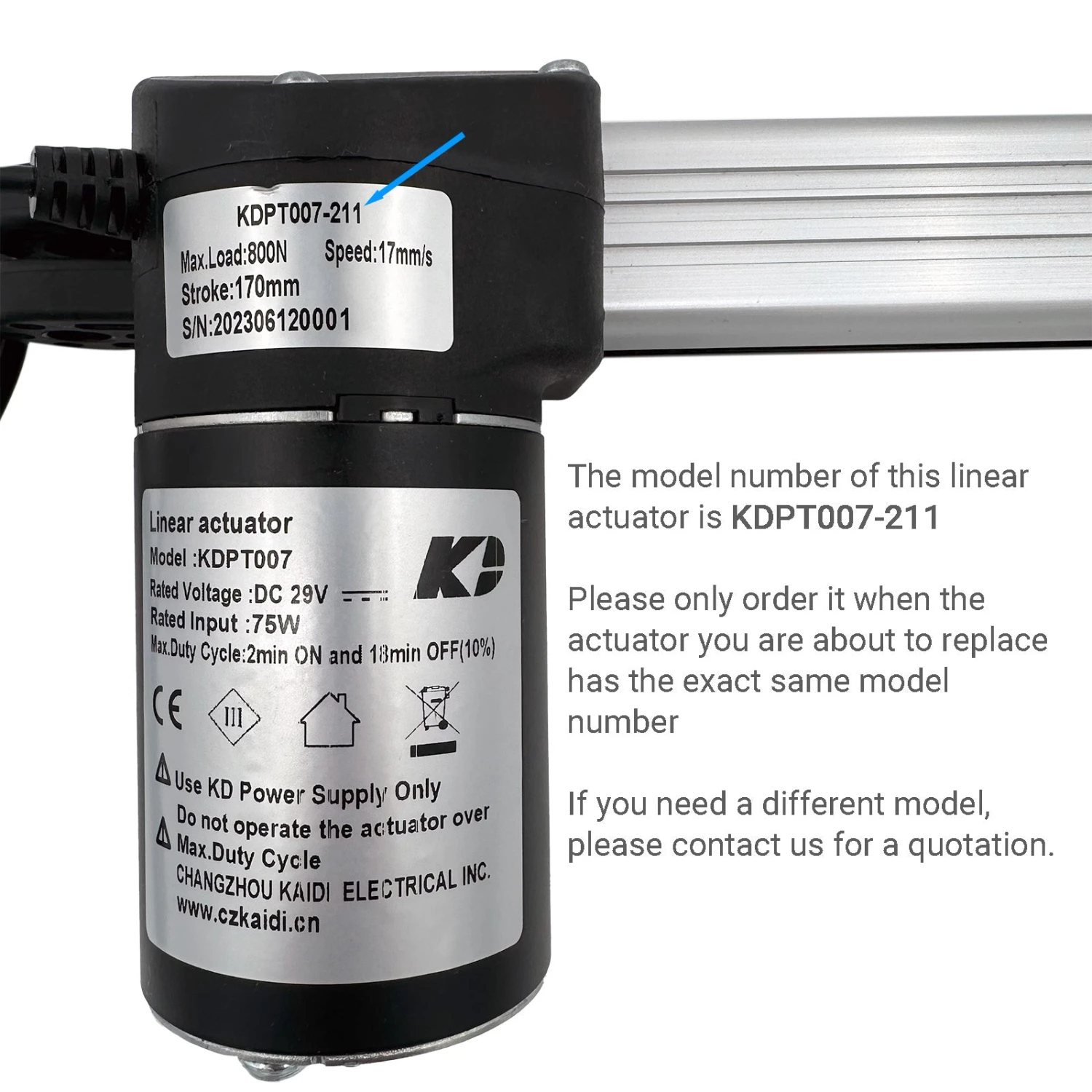

• This actuator is not compatible with all motion furniture. Please make sure that your linear actuator has the exact same model number (KDPT007-211) before ordering.
• This item is not returnable or refundable. Please avoid test buying.
• We recommend troubleshooting the power adapter, remote controller, switch, junction box, and cables before purchasing this actuator.
• The lead time for delivery is 2-20 days, depending on stock availability.
• If you need a different model, please contact us for a quote.
