KDH120-005 4 Buttons Side Switch With USB For Recliner/Lift Chair

Warning:

• The KDH120-005 is not a universal switch, please only order when your switch has the same model number.

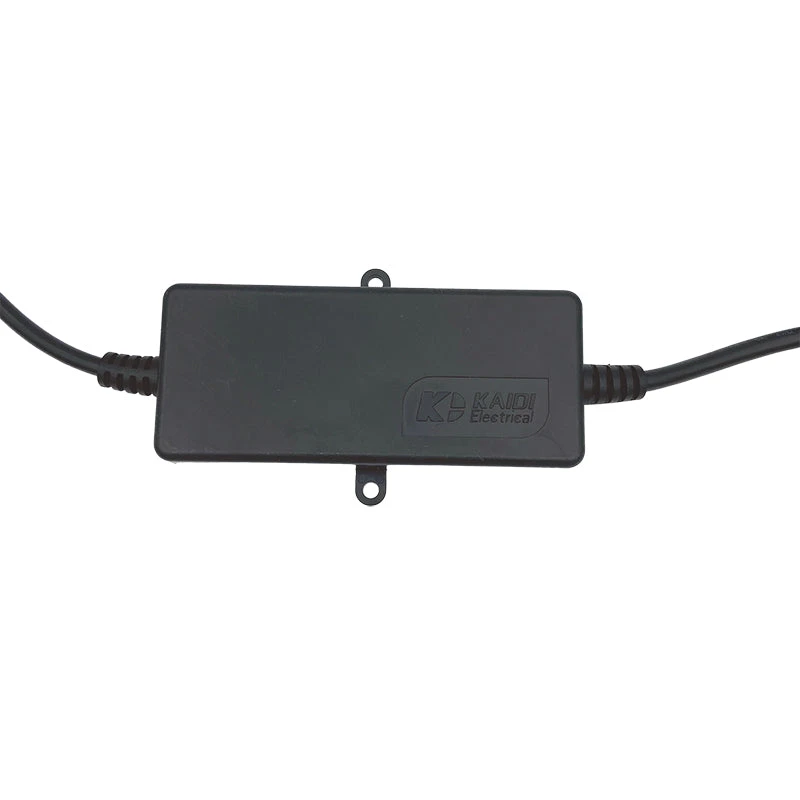

• Due to design improvements, the junction box on the switch has been cancelled, and the parts in the junction box have been integrated into the switch main body.

• This is the genuine KDH120-005 switch for the electric recliner/chair lift, if your switch is the same model, you can replace it with this switch.

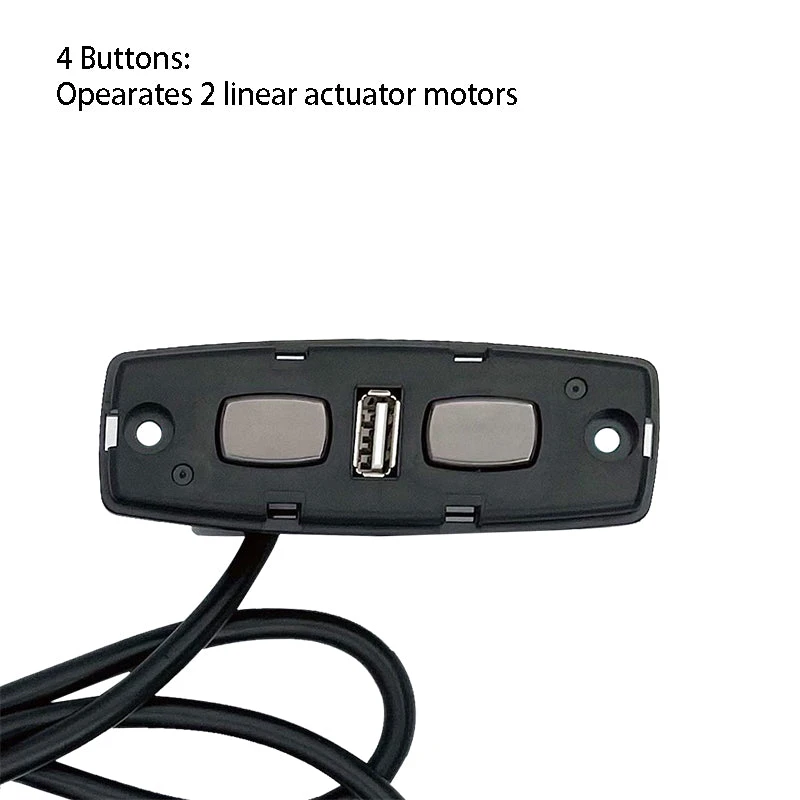

• The switch has 2 butterfly buttons, each button operates the up/down of a linear actuator, the switch is suitable for 2 linear actuators recliner/lift chair.
• The switch has a USB socket that can be used to charge the phone/tablet.

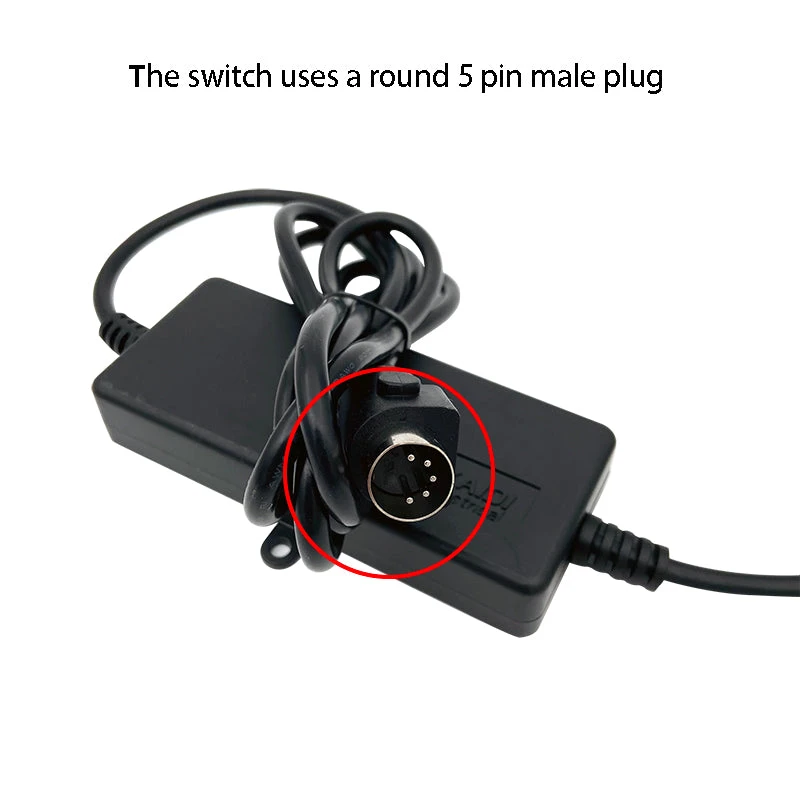

• The plug of this switch is a round 5-pin male plug.

Note:

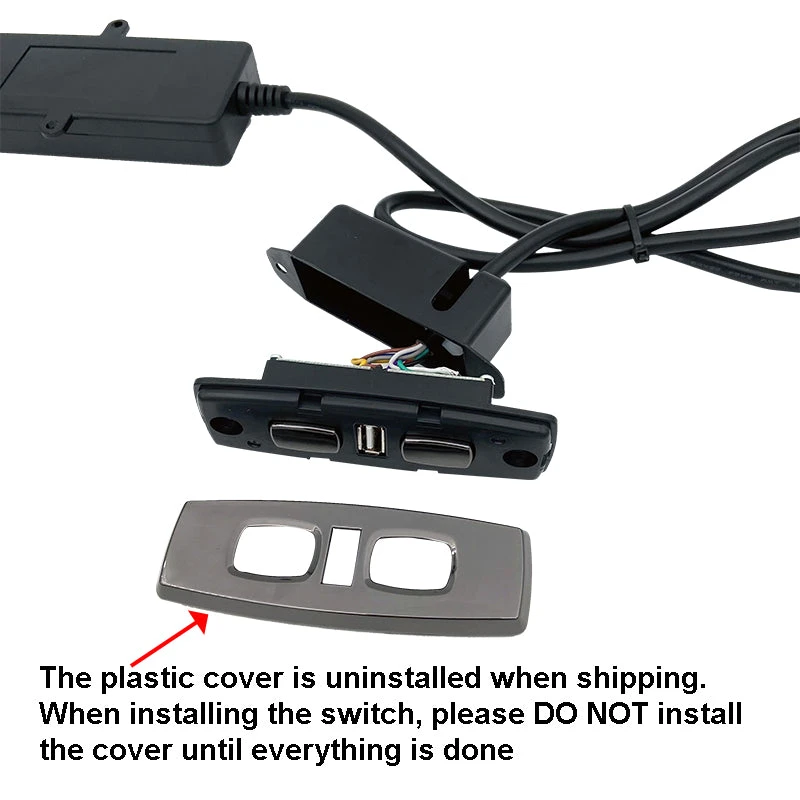

• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
