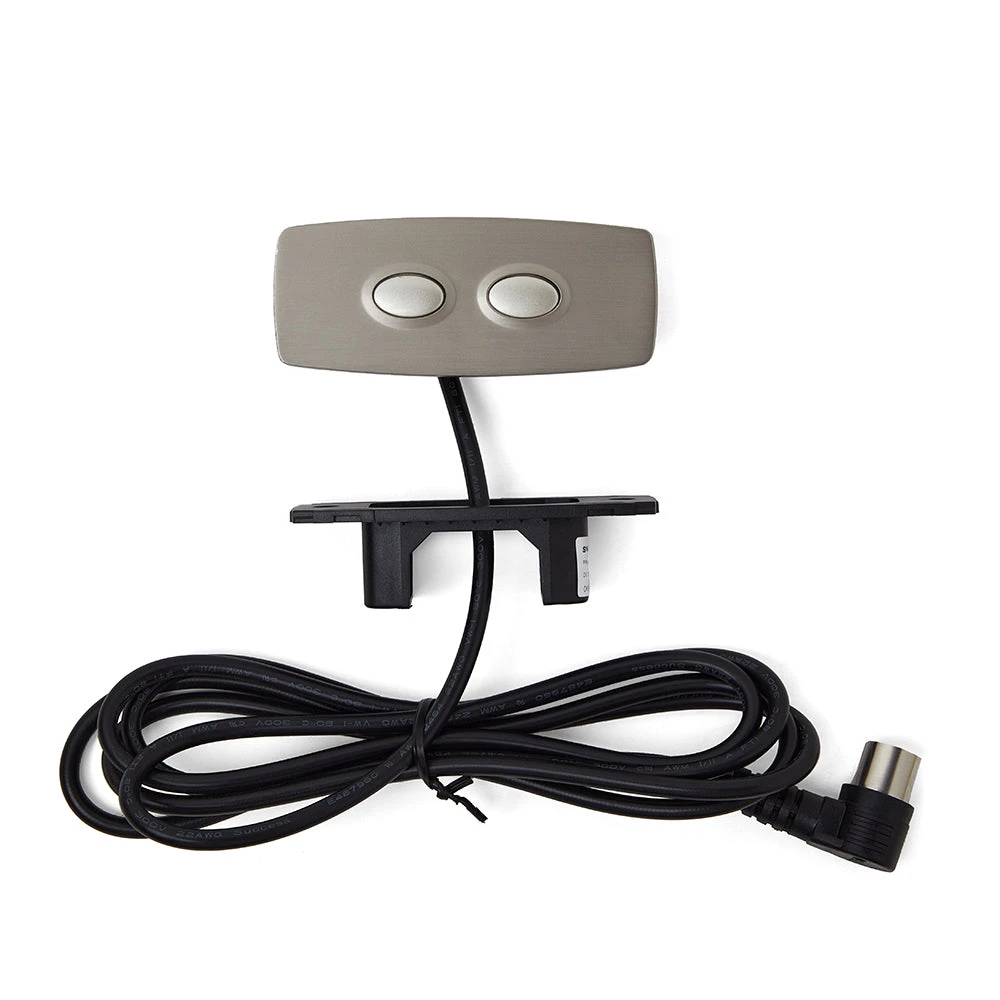

OKIN JLDK.59.02.01 2 Button Recliner Switch

• This is the genuine JLDK.59.02.01 Recliner Switch, if your switch has the same model number, you can use this switch to replace yours.
• The switch has 2 buttons, and it operates the up/down (open/close) of the recliner

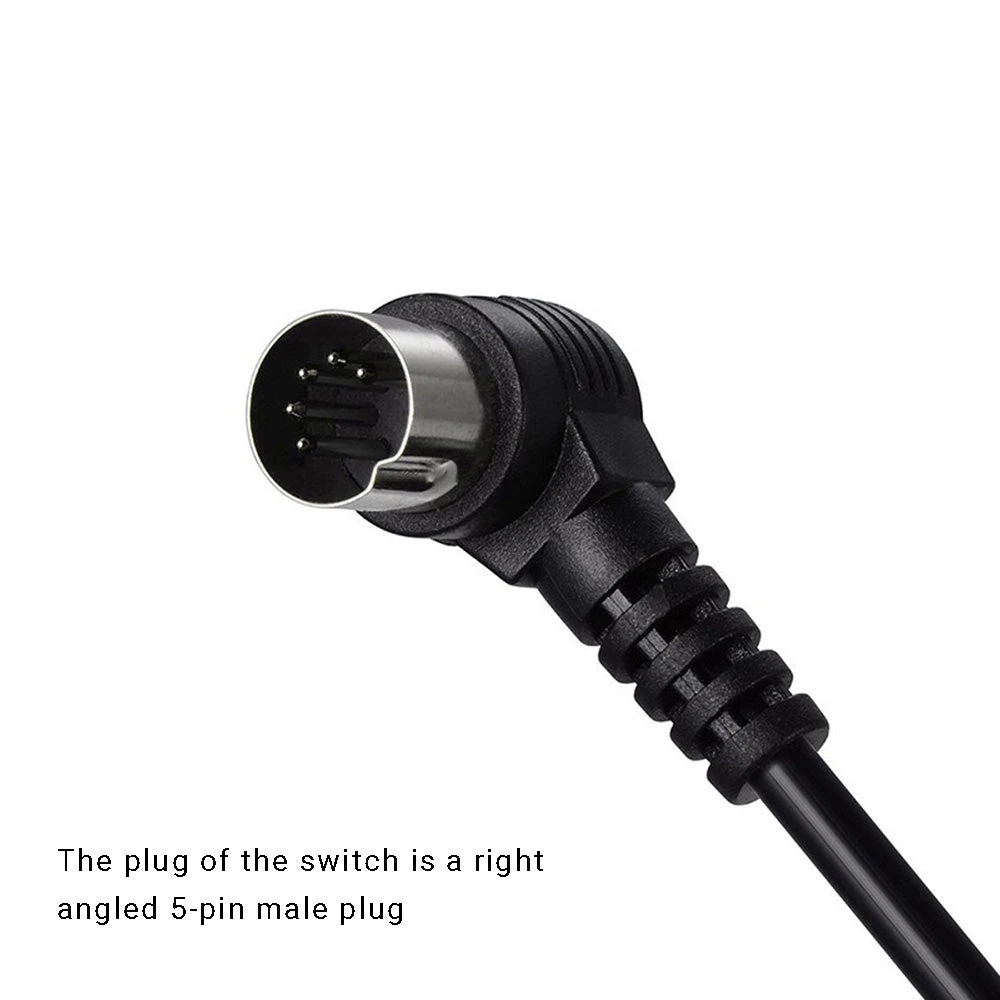

• The plug of the switch is a right-angled 5-pin plug

Specification

• Part Number: JLDK-59
• Model number: JLDK.59.02.01
• Okin Refined Electric Technology Co., Ltd.
• Rated Voltage: 29V 2A

Note:

• The JLDK.59.02.01 is not a universal switch, please only order when your switch has the same model number.

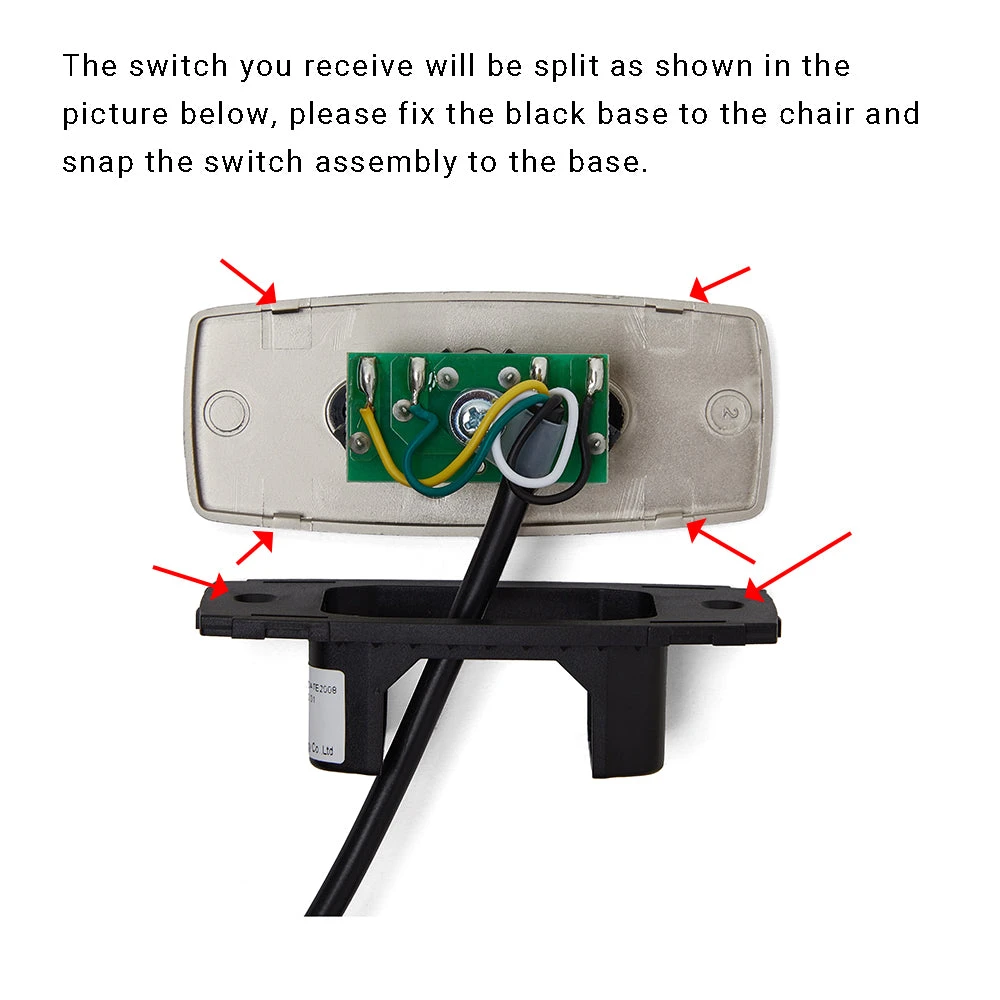

• The switch will be shipped split, when installing, please fix the black base to the chair, and snap the switch assembly to the base.
• After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
