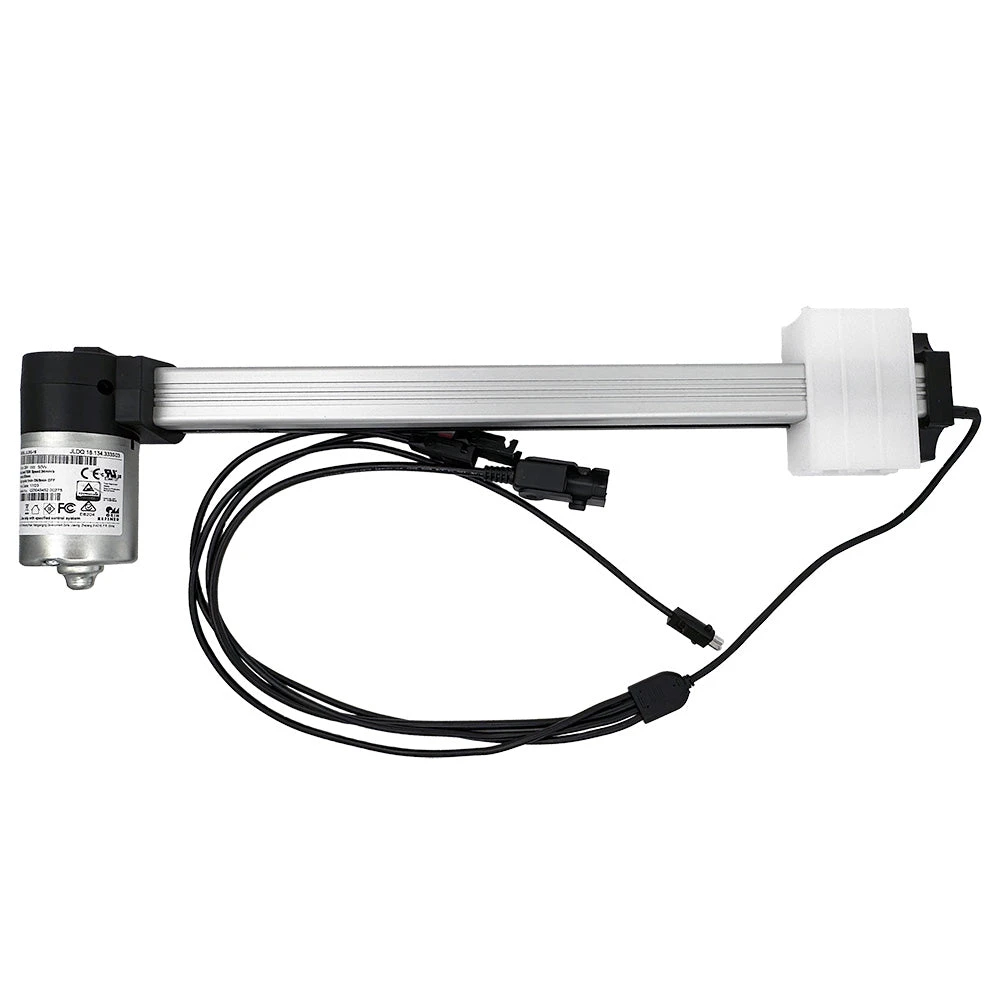

OKIN JLDQ.18.134.333S03 Linear Actuator For Recliner/Lift Chair

This is the genuine OKIN JLDQ.18.134.333S03 linear actuator. This actuator is direct replacement of the OKIN JLDQ.18.134.333S03 linear actuator, as well as other JLDQ.18.134.333S0X models (such as JLDQ.18.134.333S01). If your model number is different, this actuator won’t be a suitable replacement.



Features

• Drive motor for your power recliner or lift chair’s raise/recline function.

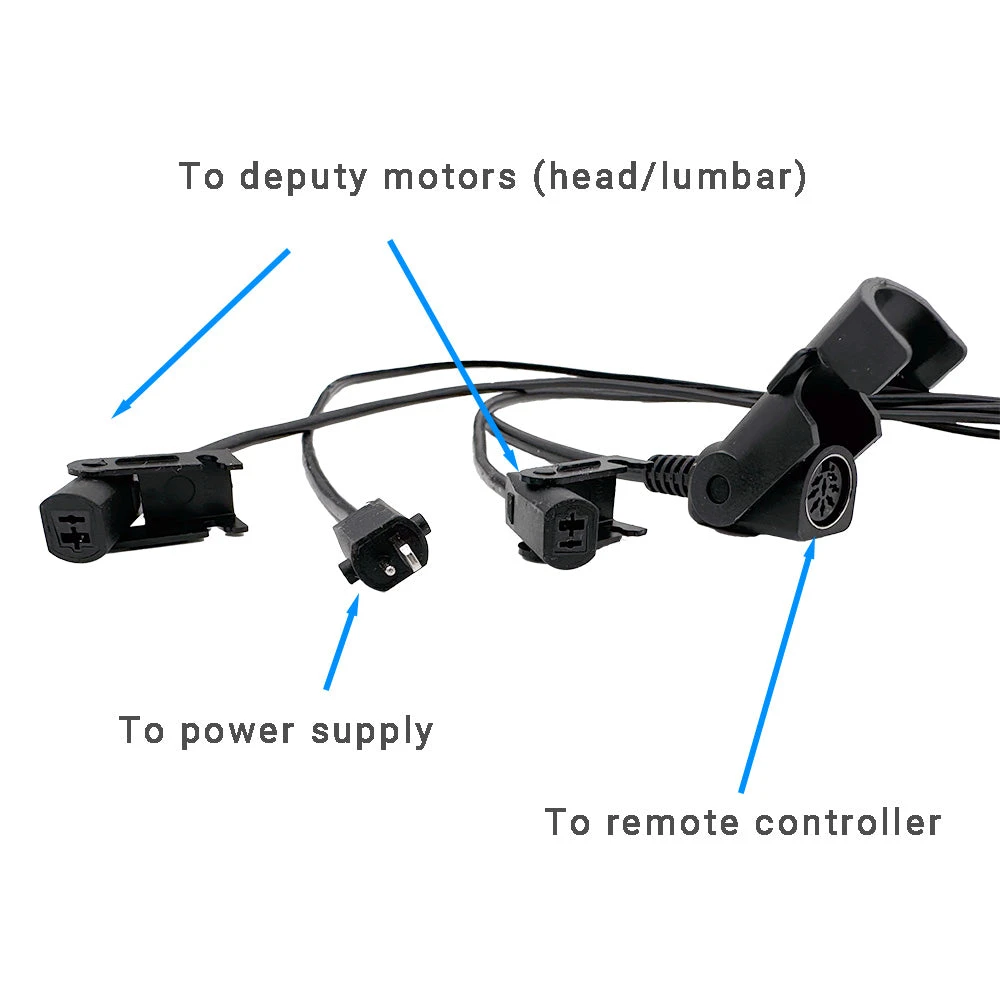

• This actuator has 4 cables and plugs, the male 2 pin plug connects to the power adapter; the female 8 pin plug connects to the remote controller; the two female 2 pin plugs connect to the head cushion and lumbar motor.



Specifications:

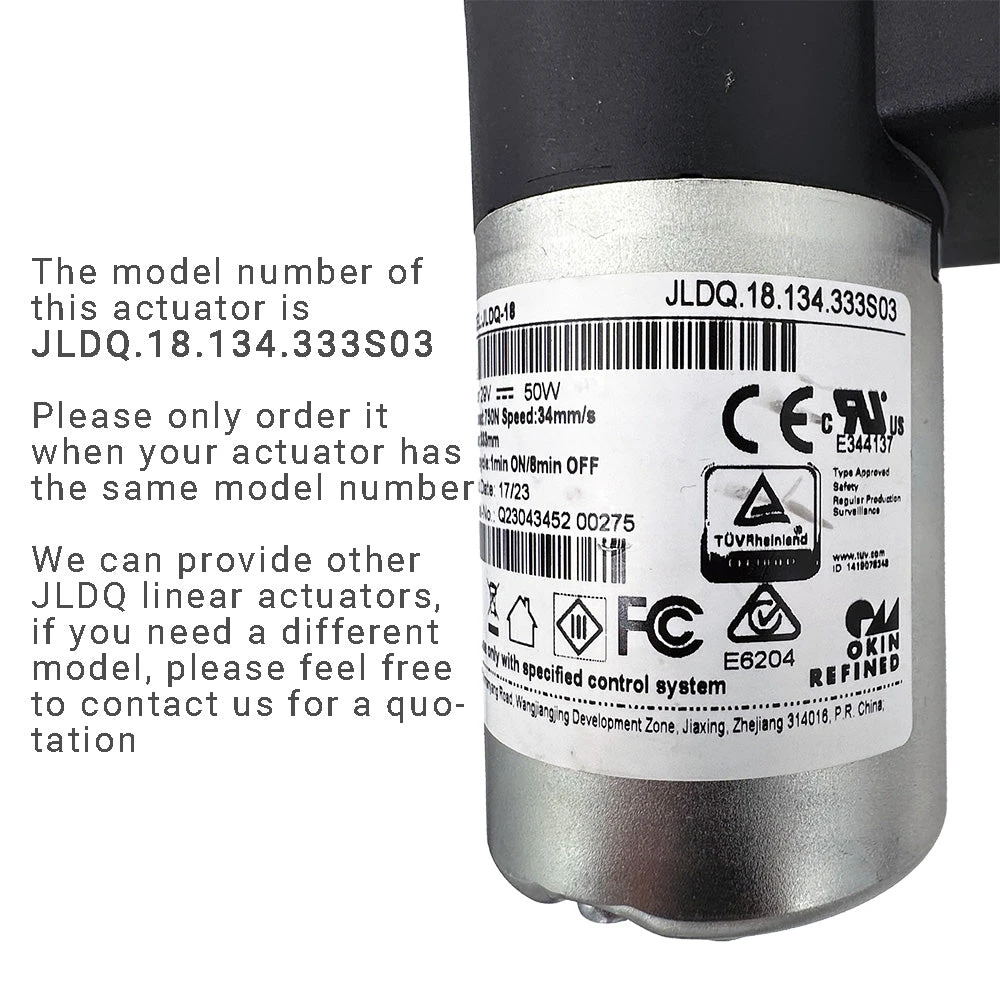

• Model: JLDQ-18
• Input: DC24V or 29V
• Power: 50W
• Max load: 750N
• Speed: 34mm/s
• Duty Cycle: 1min ON, 8min OFF



Important notice:

• Please note that this actuator does not accept returns or refunds, so we advise against purchasing it for testing purposes.
• Additionally, If your actuator’s model is not JLDQ.18.134.333S03 or does not start with JLDQ.18.134.333S0, please refrain from ordering this product.
• If you’re unsure whether this actuator is compatible with your chair, please contact us at [email protected] or call us at +8613802247190 to confirm.
• If you decide to purchase this product, please be aware that the lead time for delivery is 2-20 days, depending on stock availability.
• We ship from China using DHL/FedEx or similar methods, with shipping times of around 5-10 days. The shipping cost is 40 USD. However, if the shipping address is in the remote area list of the carrier, we can only ship through USPS.
• When placing your order, please provide a physical address and avoid using a P.O. Box address.
• If you’re located in Canada or Europe, please note that there will be a 20-30 USD importing tax/VAT collected by the shipping carrier before final delivery.
