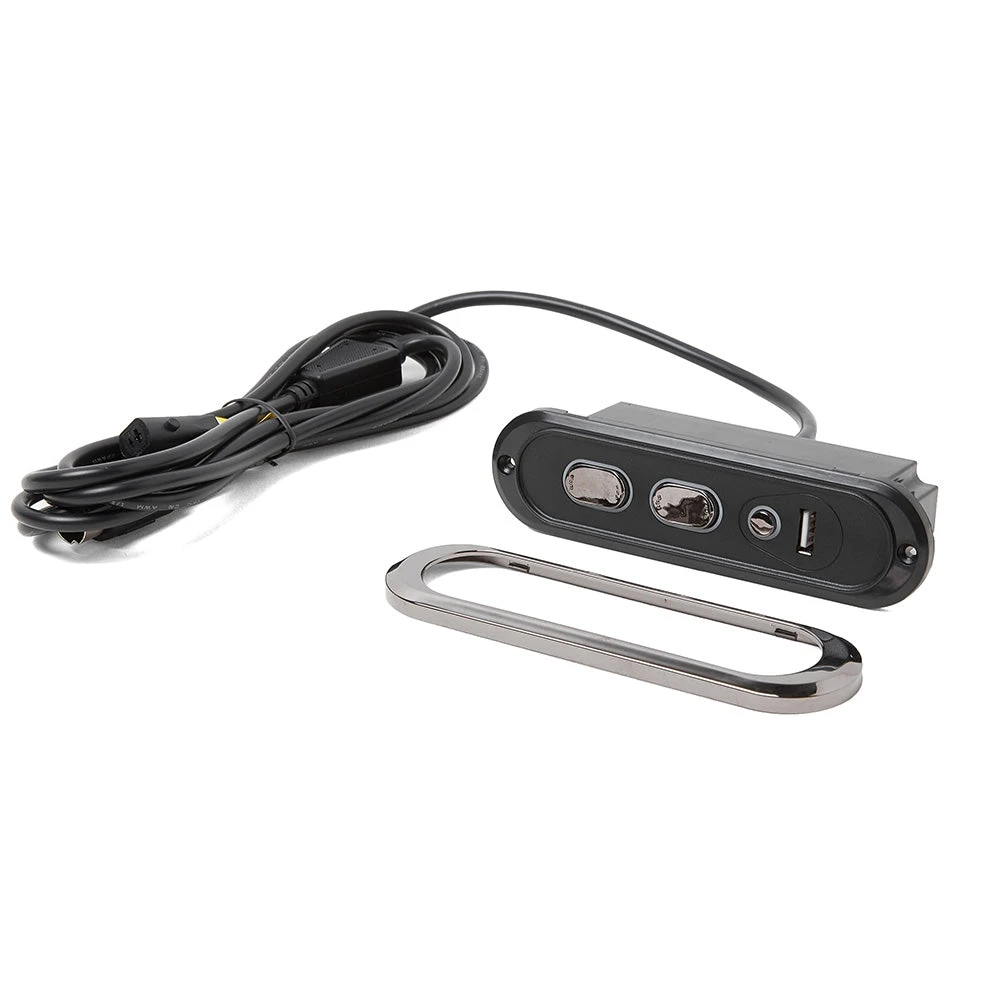

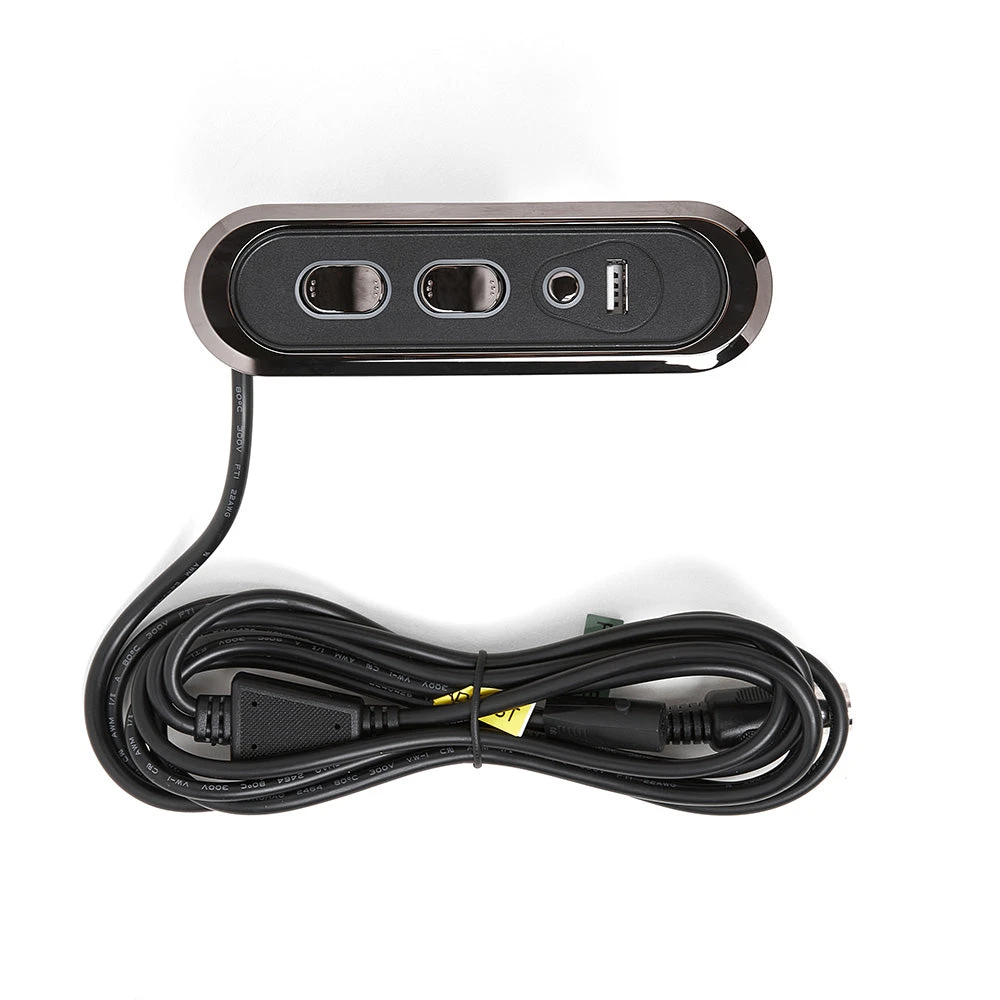

RMT R22231010184/WPSR5T11002 Recliner Switch 5 Button W/ USB Backlit

• This RMT 5 Button switch is suitable for operating the raise/recline of the recliner/ lift chair.
• The model number is WPSR5T11002, the manufacturer number is 23300507×000.
• This switch used to be manufactured under the RMT trademark, with a part number R22231010184, if your switch’s part number is R22231010184, then this switch can replace yours perfectly.
• The switch is manufactured by RMT’s subsidiary Huizhou UPSPRING Intelligent Technology Co., Ltd.

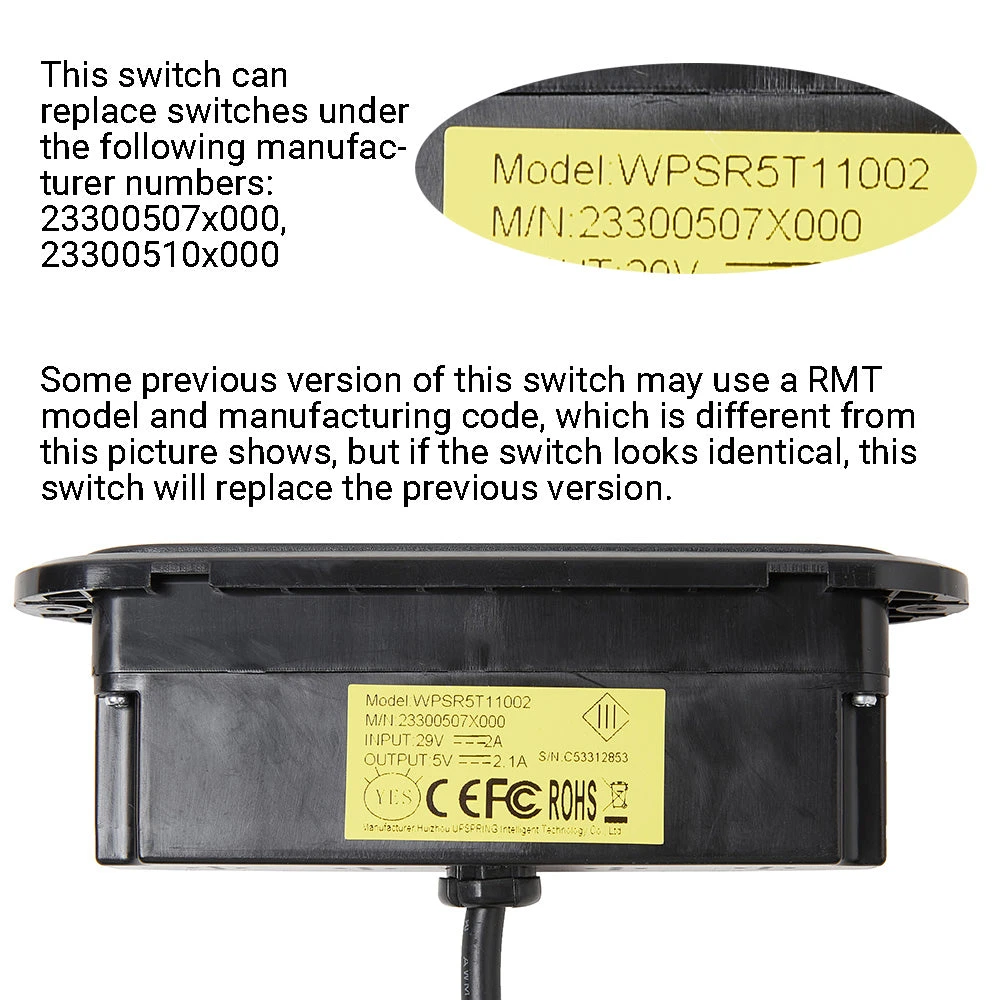

• This switch can replace switches under the following manufacturer numbers: 23300507×000, 23300510×000

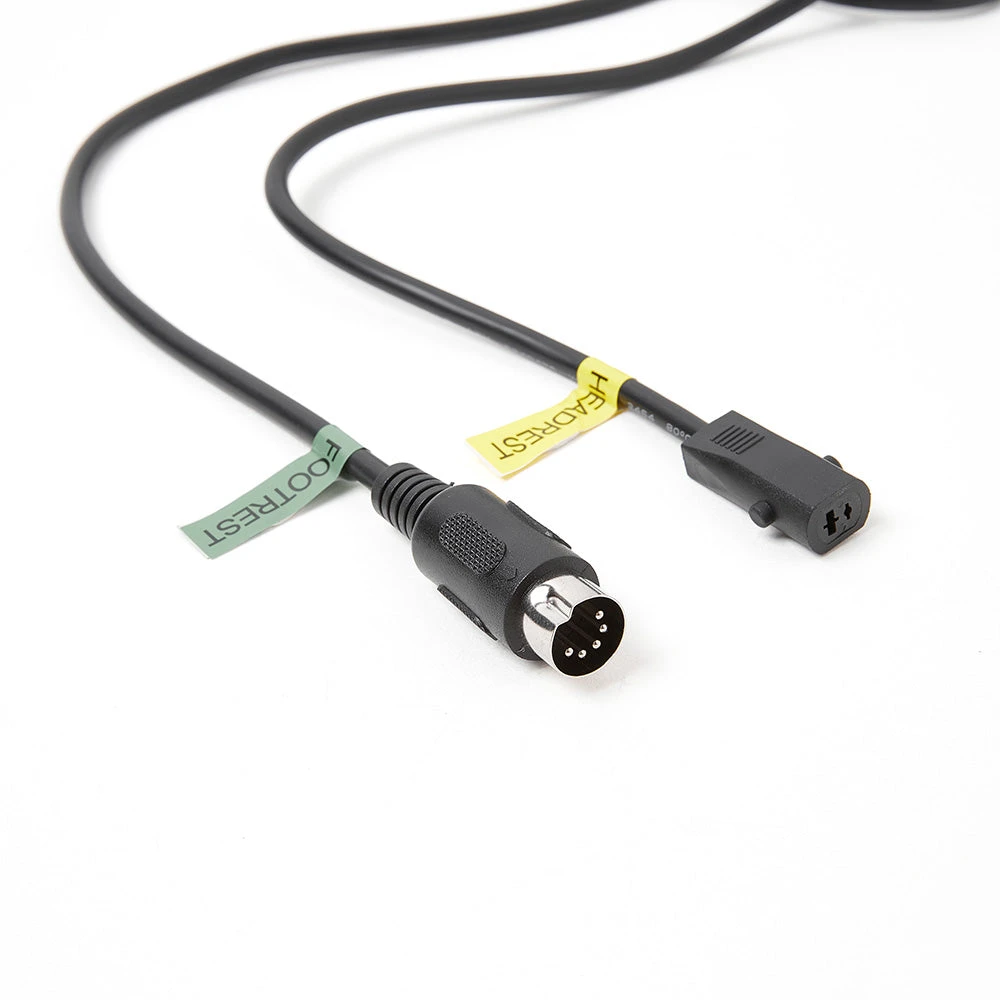

• The switch has 2 plugs, one is 5 pin male connects to the footrest motor, the other one is 2 pin female, connects to the headrest motor.



Features

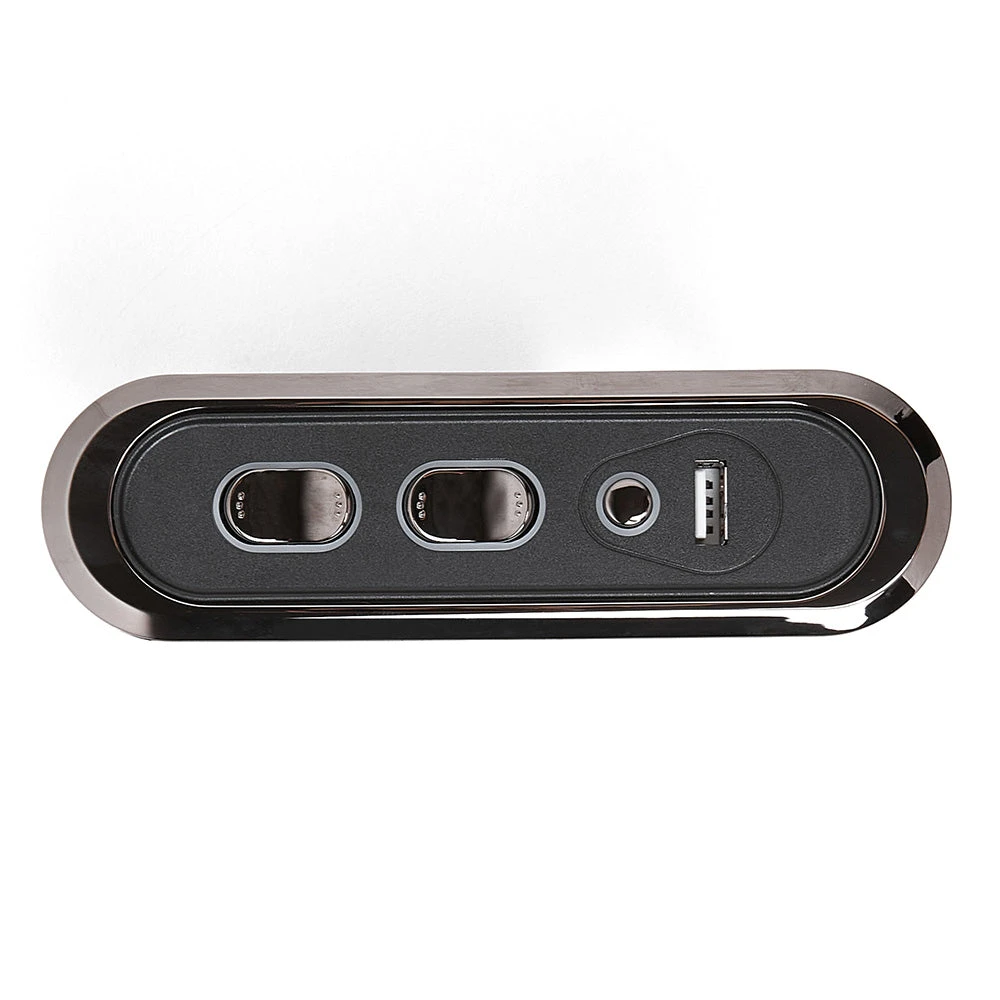

• Five buttons: operates the raise/recliner, footrest up/down and headrest back and forth, suitable for motor recliner/lift chairs with 2 linear actuator motors
• Reset button: reset the chair to the upright position in one click
• With USB port: you can use it to charge your mobile devices
• With backlight: make it easier to operate in the dark

Specification:

• Input voltage: 29V 2A
• USB port output voltage: 5V 2.1A
• Color: Black
• Cord length: 2 meters
